Περιγραφή
Type
Product Family:Cooker
Cooker size:90×60 cm
Cooker configuration:Dual fuel
Hob type:Gas
Hob energy type:Gas
N. of ovens:1
Type of main oven:Thermo-ventilated
EAN code:8017709333720
Installation positioning of the appliance:Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system:Vapor Clean
Aesthetics
Colour:Stainless steel
Design:Standard
Finishing:Satin
Aesthetic:Classica
Command panel finish:Stainless steel
Series:Concerto
Material:Stainless steel
Upstand:Yes
Hob colour:Stainless steel
Type of pan stands:Cast Iron
Type of control setting hob:Control knobs
Control knobs:Smeg Classic
Controls colour:Stainless steel
No. of controls:7
Display:Electronic 5 buttons
Door:With 2 horizontal strips
Glass type:Eclipse
Handle:Smeg Classic
Handle Colour:Brushed stainless steel
Storage compartment:Door
Feet:Stainless steel
Programs / Functions
Traditional cooking functions
- Static
- Fan assisted
- Circulaire
- Eco
- Small grill
- Large grill
- Fan grill (large)
- Fan assisted base
Cleaning functions
- Vapor clean
Options Main Oven
Timer:Yes
End of cooking acoustic alarm:Yes
Minimum Temperature:50 °C
Maximum temperature:260 °C
Hob technical features
Total no. of cook zones:5
1st zone position:Front left
2nd zone position:Rear left
3rd zone position:Central
4th zone position:Rear right
5th zone position:Front right
1st zone type:Gas – Rapid
2nd zone type:Gas – Semi Rapid
3rd zone type:Gas – UR
4th zone type:Gas – Semi Rapid
5th zone type:Gas – AUX
1st zone power:2.90 kW
2nd zone power:1.80 kW
3rd zone power:4.00 kW
4th zone power:1.80 kW
5th zone power:1.00 kW
Type of gas burners:Standard
Burner caps:Matt black enamelled
Automatic electronic ignition:Yes
Gas safety valves:Yes
Main Oven Technical Features
Net volume of the cavity:115 l
Gross volume, 1st cavity:129 l
Cavity material:Ever Clean enamel
No. of shelves:5
Type of shelves:Metal racks
Light type:Halogen
Light Power:40 W
Fan number:2
Cooking time setting:Start and Stop
Door opening:Flap down
Light when oven door is open:Yes
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
Total no. of door glasses:3
No.of thermo-reflective door glasses:2
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Grill elememt:1700 W
Large grill – Power:2900 W
Lower heating element power:1700 W
Upper heating element – Power:1200 W
Circular heating element – Power:2 x 1550 W
Temperature control:Electro-mechanical
Performance / Energy Label
Energy efficiency class:A
Energy consumption in forced air convection:3.53 MJ
Energy consumption per cycle in fan-forced convection:0.98 KWh
Energy consumption in conventional mode:4.36 MJ
Energy consumption per cycle in conventional mode:1.21 KWh
Electrical Connection
Electrical connection rating:3200 W
Current:14 A
Voltage:220-240 V
Voltage 2 (V):380-415 V
Frequency:50/60 Hz
Power supply cable length:110 cm
Installed electric cable:Yes, Single phase
Gas Connection
Gas connection rating (W):11400 W
Gas Type:G30 LPG Liquid gas
Logistic Information

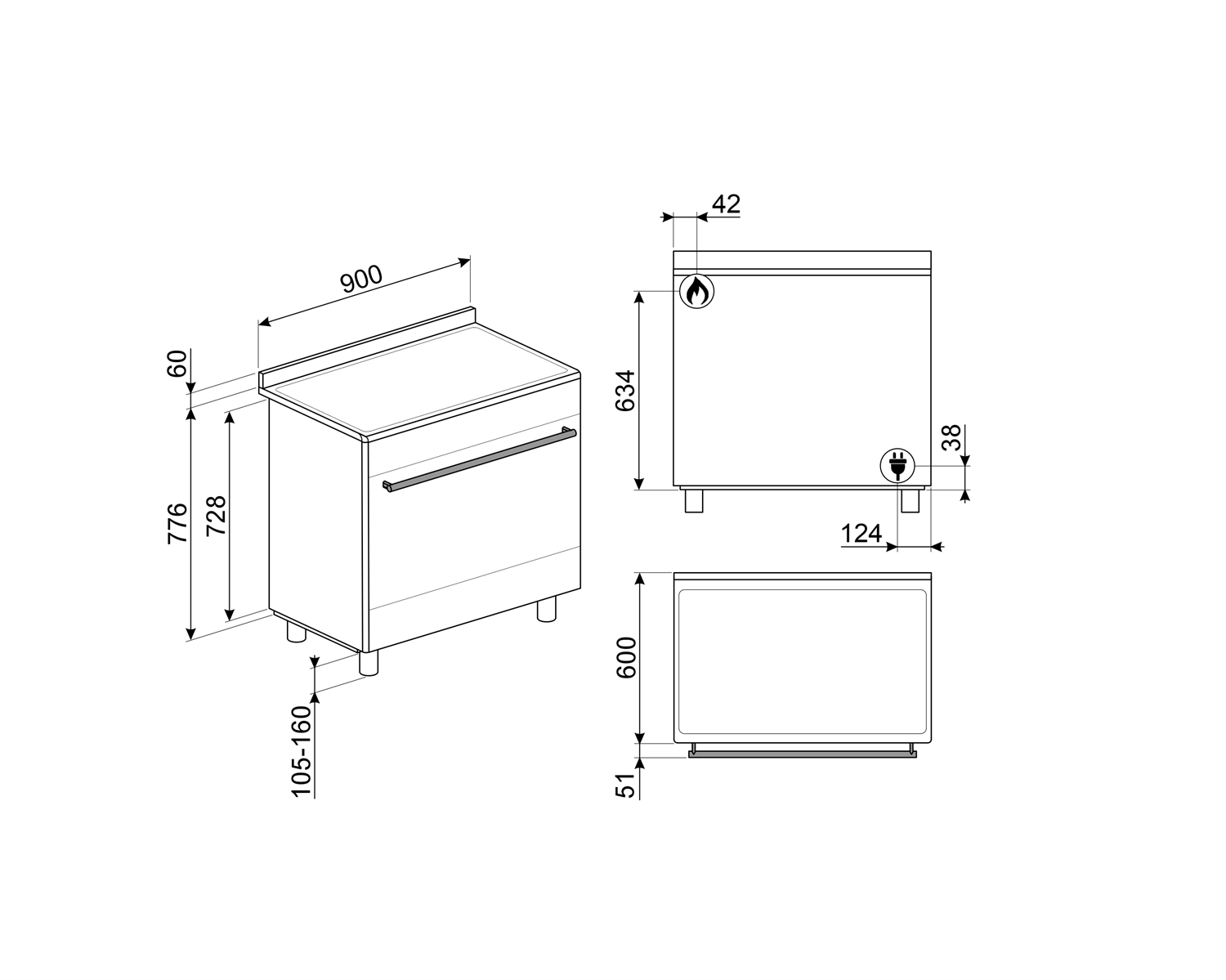

Dimensions of the product HxWxD (mm):900x900x600 mm
Width (mm):900 mm
Product Height (mm):900 mm
Depth (mm):600 mm
Dimensions of the packed product (mm):860X960X670 mm
Gross weight (kg):82.550 kg
Net weight (kg):73.600 kg
Packed width:960 mm
Packaged depth:670 mm
Height (mm) packed:860 mm
Maximum stackability:5
Type of packaging:Shrinkwrap
Packaging composition – paper & cardboard (kg):4.112 kg
Packaging composition – polystyrene (kg):1.315 kg
Packaging composition – wood (kg):2.660 kg
Packaging composition – plastic (kg):0.882 kg
